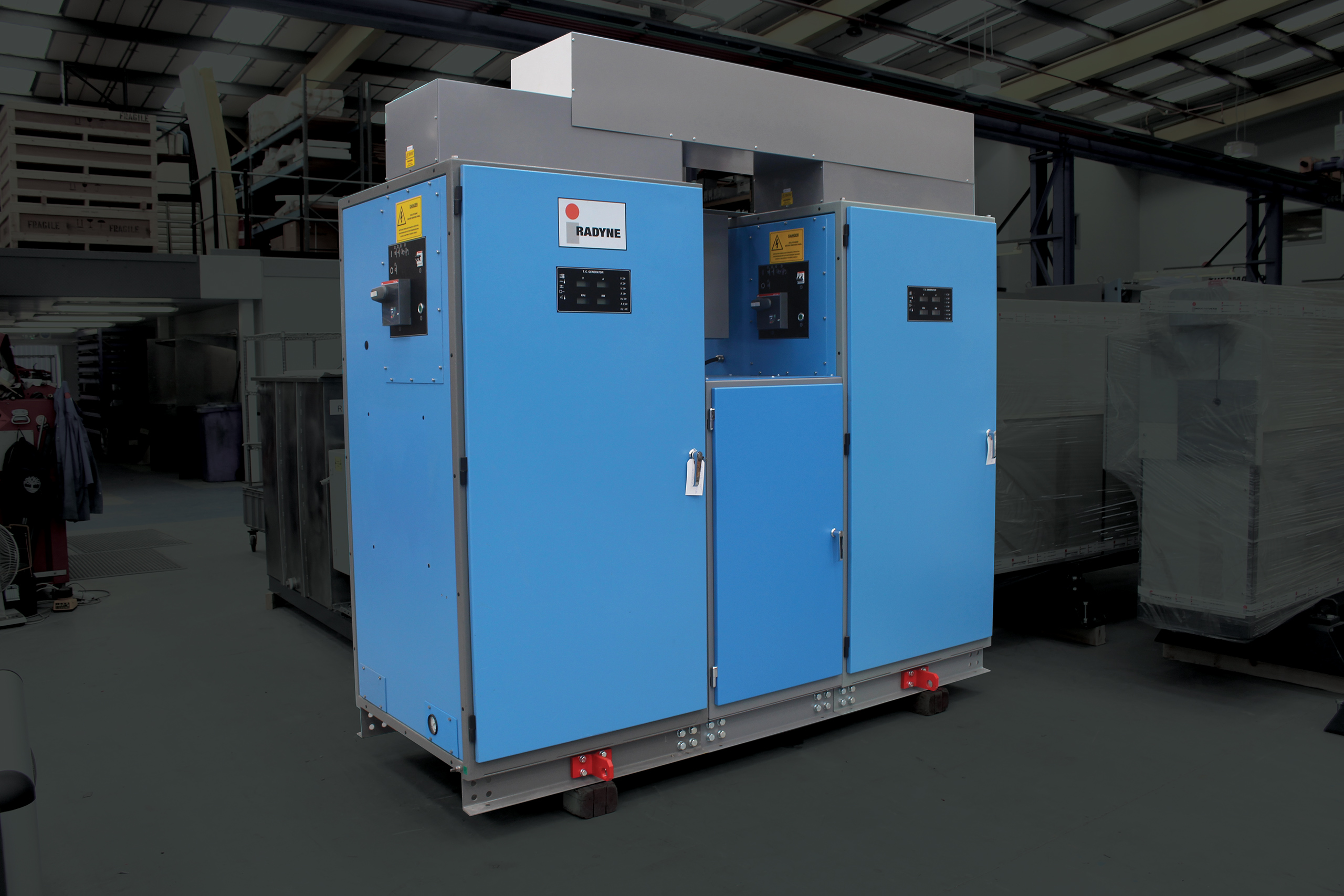

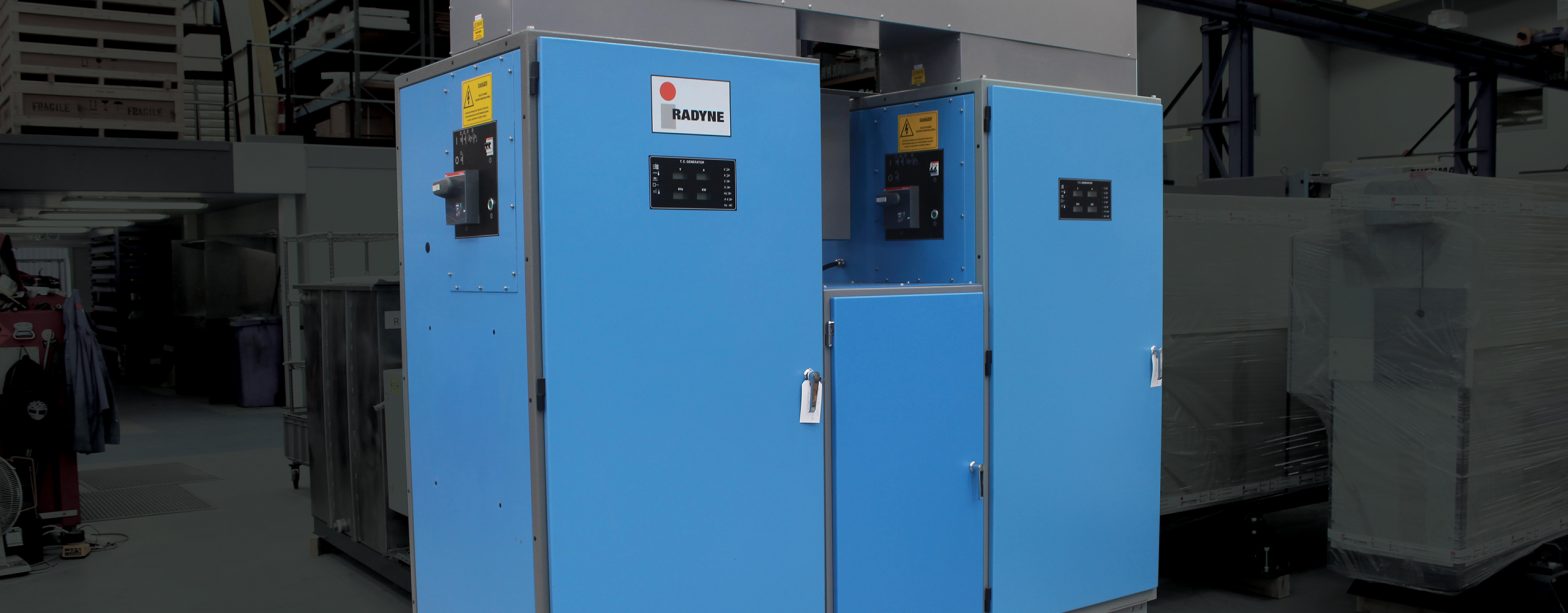

Twin Induction Power Supply
Used extensively in the offshore industry the Radyne Twin Power Supply are part of a range of Induction Power Supplies offering a wide selection of power and frequency combinations. They incorporate advance technology ensuring high efﬁciency, flexibility and operational reliability suitable for the most challenging climatic and industrial environments. With thousands of units in the ﬁeld the Radyne Twin Power Supply has proven itself reliable, robust and more than up to the task in hand.

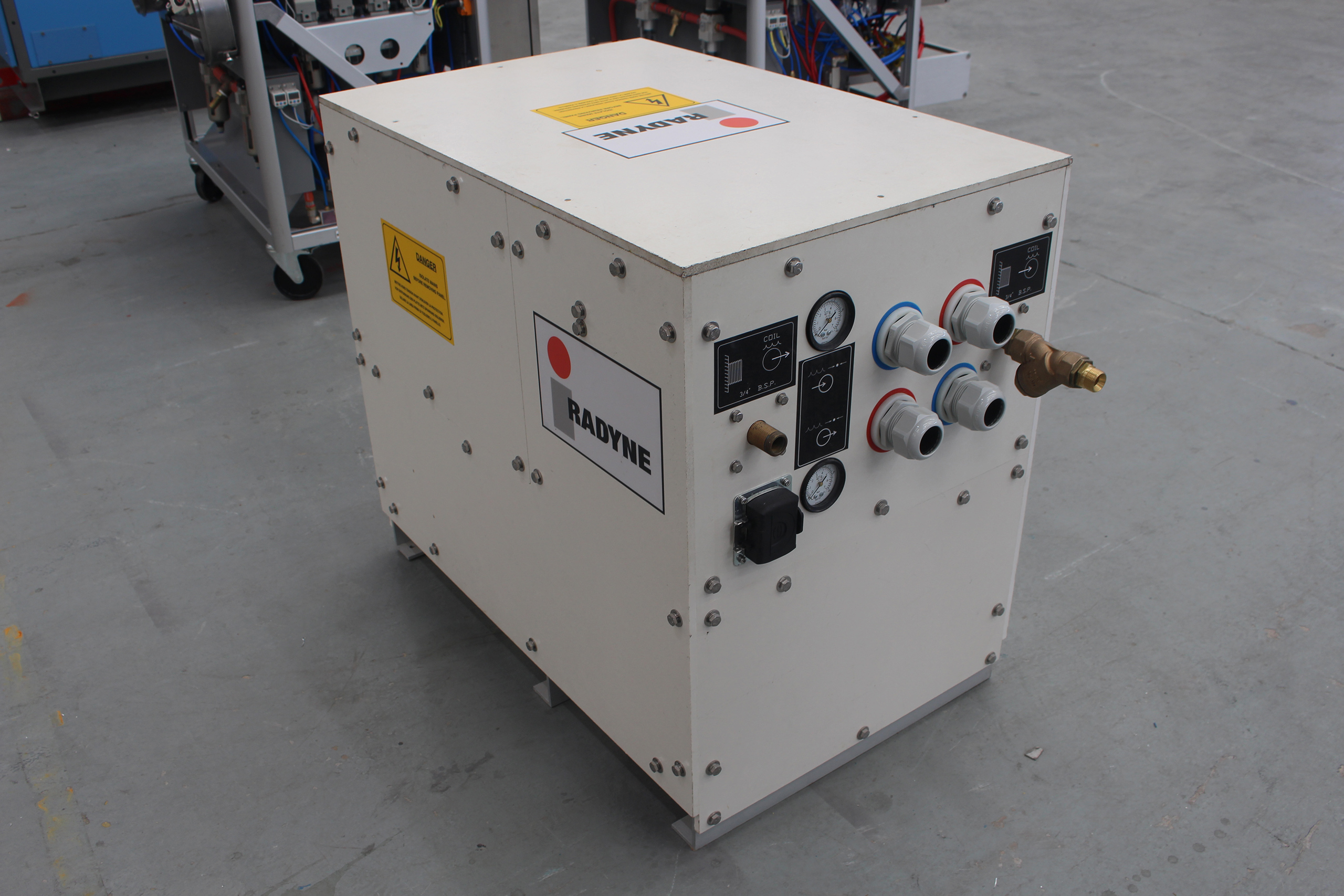

The Twin Power Supply makes use of a parallel output circuit that allows the use of remote placement of the induction heating station, through use of specialist air cooled co-axial power cables route lengths in excess of 50 m are possible for connection to remote capacitor banks with low levels of transmission losses.
To ensure absolute minimum downtime during high value operations, the Twin Power Supply is used with a solid state changeover switch for remote fast acting redundancy. While the first power supply is operational the second acts as a back-up. With switch control sited between the two units, operators are able to select either unit to run at any moment in time.
|Model||Twin Available||Output Power||Output Frequency|
|200TC3||✔||200 kW||2,000 – 3,300 Hz|
|450TC3||✔||450 kW||2,000 – 3,300 Hz|
|750TC3||750 kW||2,000 – 3,300 Hz|
